Waterproof Automotive Sealed APEX 2.8 Series 14 Position Engine Plug Wire Connector Harness with 2 Years Warranty
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | ग्वांगडोंग, चीन |
| ब्रांड नाम: | Edgarcn |
| प्रमाणन: | ISO9001/TS16949 IPC620 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 10000 |
|---|
|
विस्तार जानकारी |
|||
| कनेक्टर प्रकार: | FCI 54201416 PA66 वॉटरप्रूफ कनेक्टर | टर्मिनल आकार: | 2.8 मिमी |
|---|---|---|---|
| पदों की संख्या: | 14 | आवास सामग्री: | पीए (बहुपद) |
| तापमान की रेंज: | -40 ° C से +125 ° C से | संपर्क प्रतिधारण बल: | > 90 एन |
| संपर्क सम्मिलन बल: | <15 एन | कनेक्टर संभोग बल: | <90 एन |
| आवाज़ का उतार-चढ़ाव: | 5.25 x 6.40 मिमी (डबल पंक्ति) | रंग विकल्प: | काले, हल्के भूरे, गहरे भूरे, प्राकृतिक |
| टर्मिनल संगतता: | एपेक्स 2.8 मिमी महिला/पुरुष टर्मिनल | वाटरप्रूफ रेटिंग: | सील |
| शृंखला: | एपेक्स 2.8 | कनेक्टर लिंग: | महिला/पुरुष आवास विकल्प |
| सामग्री की संरचना: | प्लास्टिक, धातु, रबर | ||
| प्रमुखता देना: | APEX 2.8 Series Engine Plug Wire Connector,14 Position Automotive Wiring Harness,2 Years Warranty Cable Assembly |
||
उत्पाद विवरण

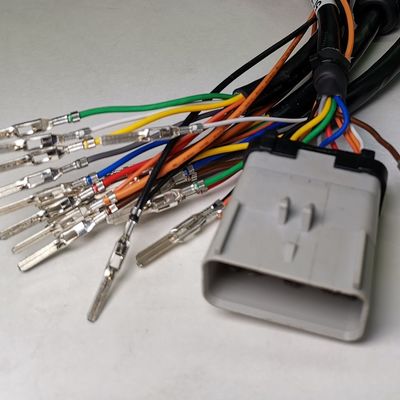

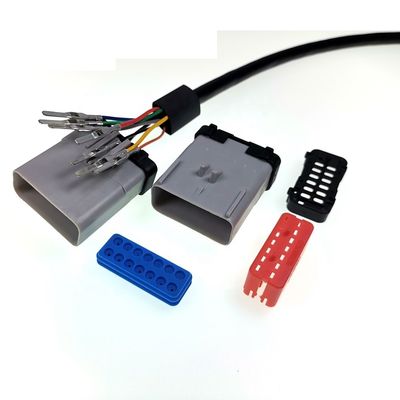

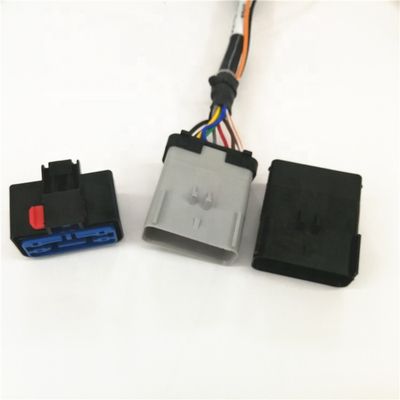

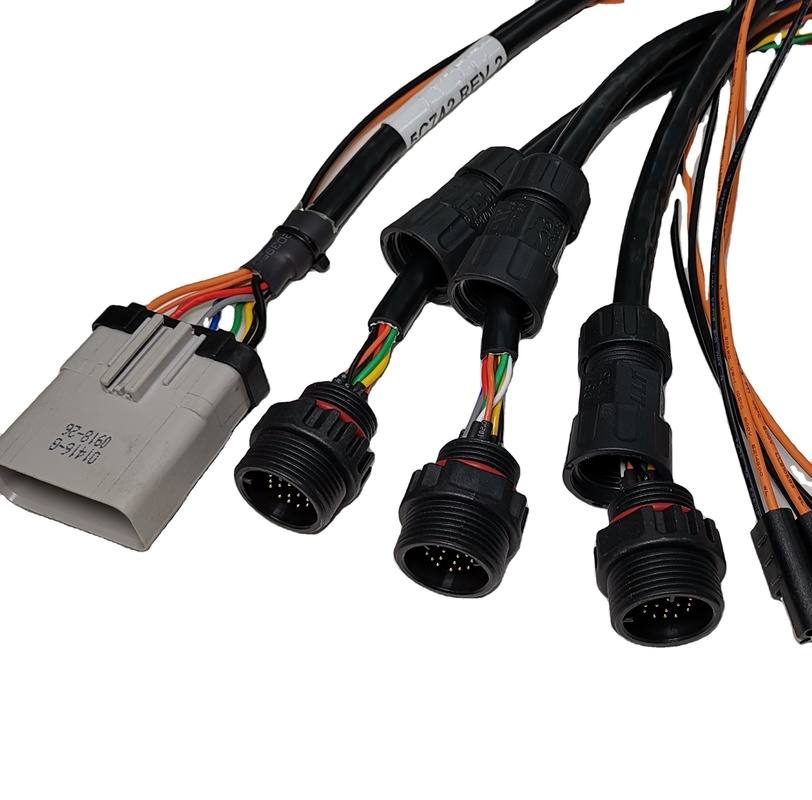

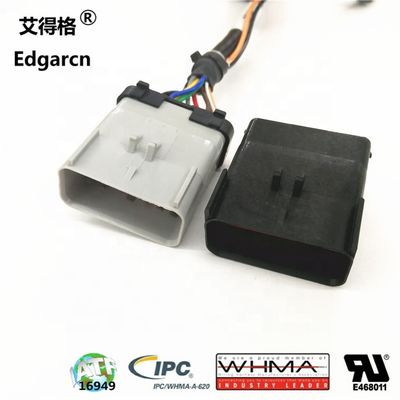

Waterproof Automotive Sealed APEX 2.8 Series 14 Position 54201416 Custom Engine Plug Wire Connector Harness Cable Assembly
Product Description
RP1226 Cable Assembly - FCI 54201416 Delphi PA66 waterproof connector with wire harness and cable assembly.
Custom Engine Sensor Plug Wire Connector Harness Cable Assembly specifically designed for Ford vehicles.
Key Features
- Waterproof automotive sealed Delphi FCI APEX 2.8 series connector
- 14 position grey connector with crimping cable assembly
- Valve cover glow plug connector pigtail wire harness
- FCI connector engine wire harness
- Instrument panel and cockpit connectors
- Coupling connectors with Apex 2/3/4/6/10/14 way coupling housings
OE Numbers
| Direct OE Cross | Manufacturer |
|---|---|
| 54201416 | FORD MOTOR COMPANY |
* This type harness kits for display only, will not sell out
Technical Specifications
- Temperature range: -40°C to +125°C
- Contact retention force: > 90 N
- Contact insertion force: < 15 N
- Connector mating force: < 90 N
- Housing material: PA (Polyamide)
- Usable terminals: Apex 2.8 mm female/male terminals
Packaging & Lead Time
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
Packaging details can be customized by client specification. International shipping available via DHL, UPS, FedEx, TNT, ARAMEX, and EMS.
Frequently Asked Questions
Q: Can you help to design?
A: Yes, we are an ODM/OEM company specializing in wire harness & cable assembly since 1999.
Q: When will you start to help design?
A: We sketch simple solutions for initial discussion. After quotation and order placement, we begin detailed drawings and confirm with the client.
Q: What if quality issues occur?
A: Our quality and engineering team responds to quality issues within 72 hours, committed to long-term customer relationships and service excellence.
Q: Do you have standard products to reduce lead time?
A: Yes, we have over 1000 sets of molds and more than 5000 products developed over 20 years of specialization in wire harnesses.
